The Story

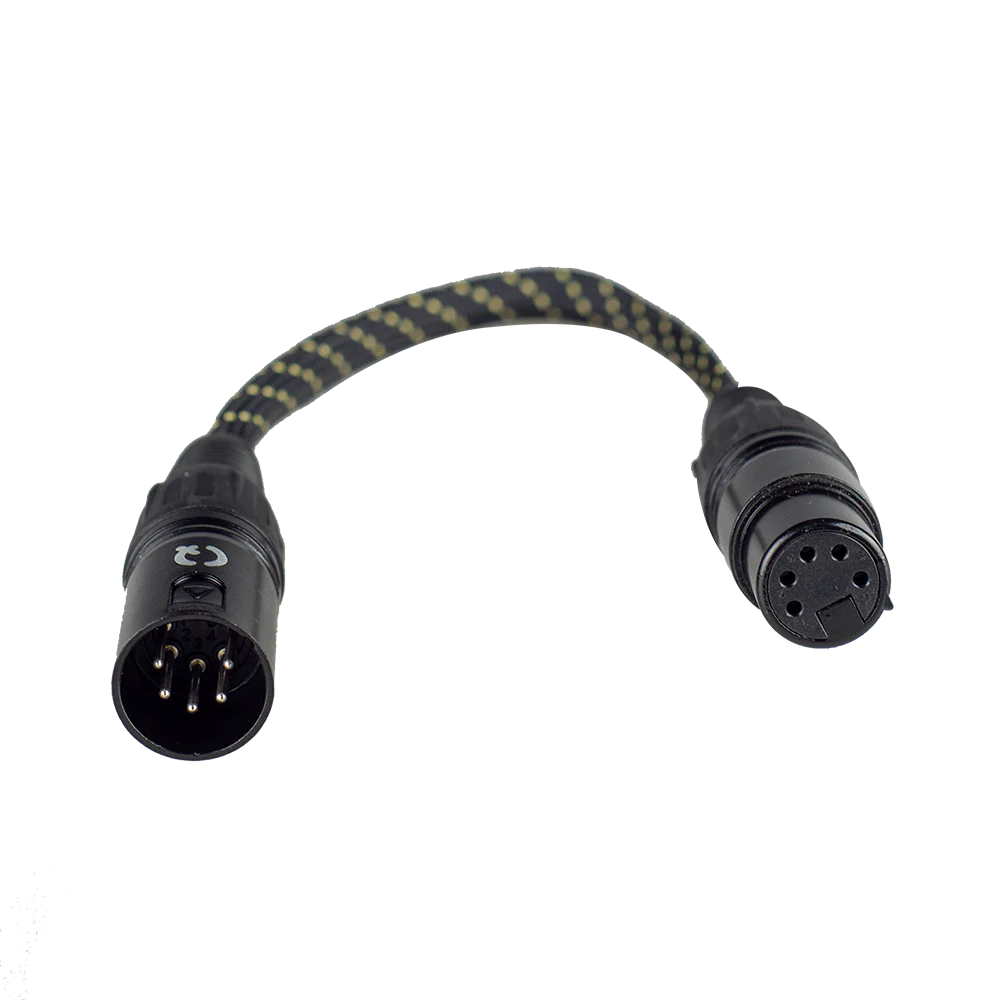

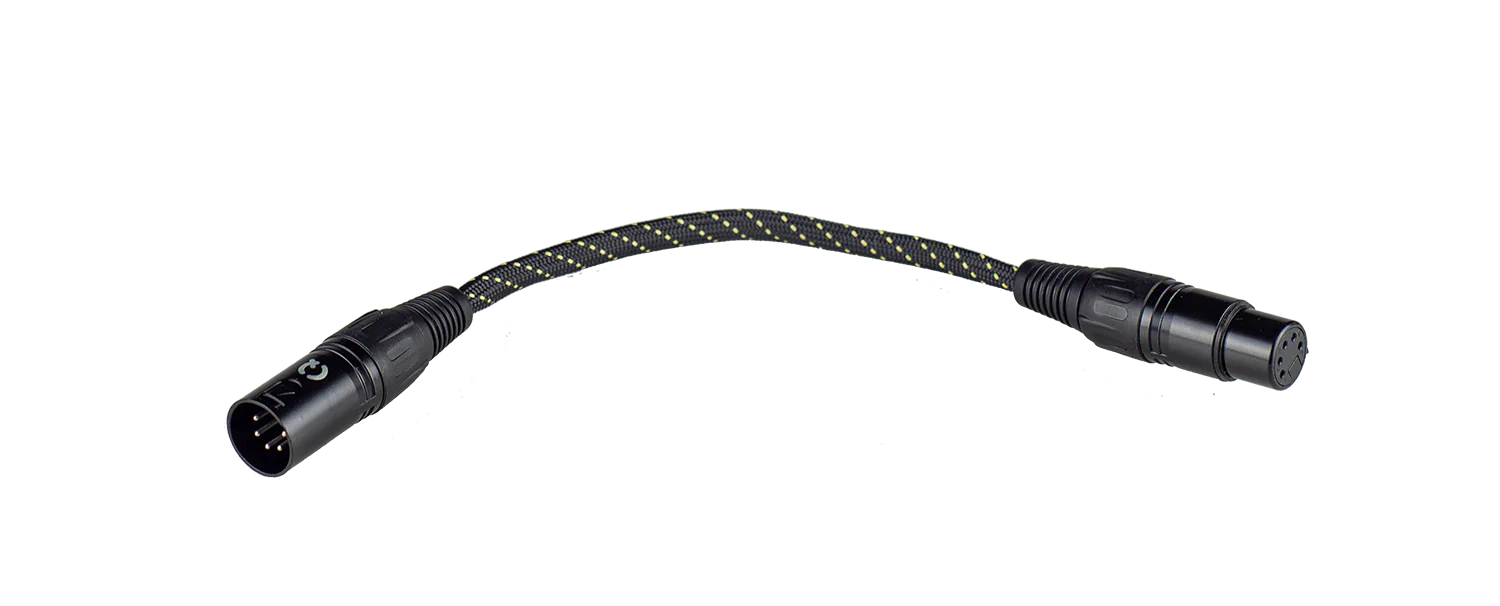

Finally you can hook your favorite QaromaShop housing up to any PID temperature controller! This handy coil adapter plugs into a DC/Auber controller and allow you to plug your QaromaShop coil into the female end.
What's Included:
- Universal Coil Adapter
How To Use:
Simply plug the male end of the adapter into your DC/Auber controller and plug your QaromaShop coil into the female end of the adapter. Please pay careful attention to the pinouts listed below to confirm compatibility with your controller, we cannot be responsible for improper use of the adapter.Â
DC/Auber Coil Pinout (male end of adapter):
PIN 1 = Power-, PIN 2 = Power+, PIN 3 = Thermocouple+, PIN 4 = Thermocouple-, PIN 5 = Ground
QaromaShop Coil Pinout (female end of adapter):
PIN 1 = Thermocouple-, PIN 2 = Thermocouple+, PIN 3 = Ground, PIN 4 = Power-, PIN 5 = Power+
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
Finally you can hook your favorite QaromaShop housing up to any PID temperature controller! This handy coil adapter plugs into a DC/Auber controller and allow you to plug your QaromaShop coil into the female end.
What's Included:
- Universal Coil Adapter
How To Use:
Simply plug the male end of the adapter into your DC/Auber controller and plug your QaromaShop coil into the female end of the adapter. Please pay careful attention to the pinouts listed below to confirm compatibility with your controller, we cannot be responsible for improper use of the adapter.Â
DC/Auber Coil Pinout (male end of adapter):
PIN 1 = Power-, PIN 2 = Power+, PIN 3 = Thermocouple+, PIN 4 = Thermocouple-, PIN 5 = Ground
QaromaShop Coil Pinout (female end of adapter):
PIN 1 = Thermocouple-, PIN 2 = Thermocouple+, PIN 3 = Ground, PIN 4 = Power-, PIN 5 = Power+
